HDPE Geomembrane

HDPE Geomembrane

HDPE Geomembrane are used in a wide range of liners and containment applications. Our geomembrane are made from premium virgin HDPE resins which is outstanding in long term resistance to chemicals, ultraviolet, ozone, oxidation and environment stress crack.

At VSC, we take "product quality" seriously. Research & Development Center in our new site at Bangpu Industrial Estate allow us to develop our unique formulations that fulfil customer's requirement. Our HDPE geomembrane is certified to GRI GM-13 standard.







Product Specifications HDPE Smooth Geomembrane

Tested Property

Test Method

Standard Values

VSC050

VSC075

VSC100

VSC150

VSC180

Thickness, mm

Minimum average values

Lowest individual reading

ASTM D 5199



0.50

0.47



0.75

0.70



1.00

0.90



1.50

1.40



1.80

1.70

Density, g/cm³

ASTM D 792

≥0.94

≥0.94

≥0.94

≥0.94

≥0.94

Tensile Properties

(each direction)

Strength at Break, kN/m

Strength at Yield, kN/m

Elongation at Break, %

Elongation at Yield, %

ASTM D 6693

Type IV









15

9

700

13





22

12

700

13





31

17

700

13





49

26

700

13





53

29

700

13

Tear Resistance, N

ASTM D 1004

75

110

145

240

270

Puncture Resistance, N

ASTM D 4833

200

320

410

580

640

Carbon Black Content, %

ASTM D 1603

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

Carbon Black Dispersion

ASTM D 5596

Cat.1 Cat.2

Cat.1 Cat.2

Cat.1 Cat.2

Cat.1 Cat.2

Cat.1 Cat.2

Oxidative Induction Time, minutes

ASTM D 3895,

200° C: O2, 1atm

        >140

        >140

>140

>140

>140



  Typical Roll Dimensions

Roll length, meter

280

280

210

140

105

Roll width, meter

7.0

7.0

7.0

7.0

7.0

Roll area, m²

1960

1960

1470

980

735



Applications :

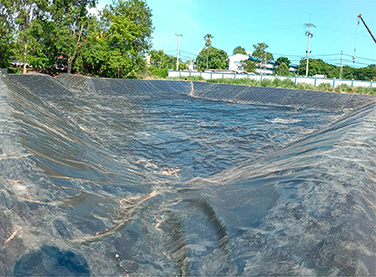

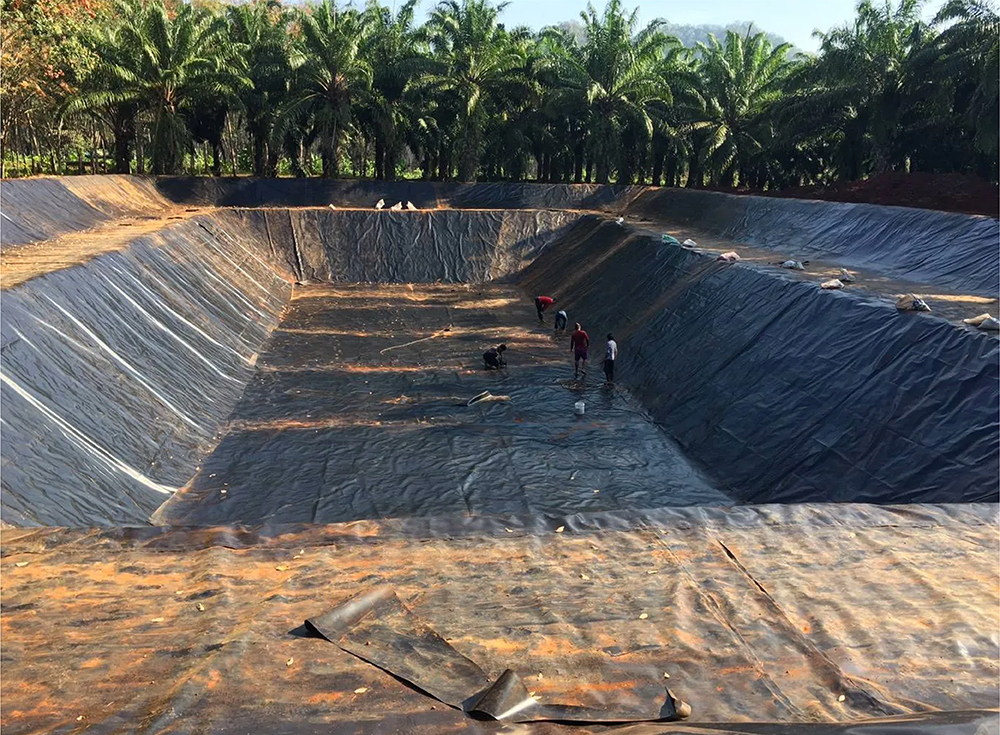

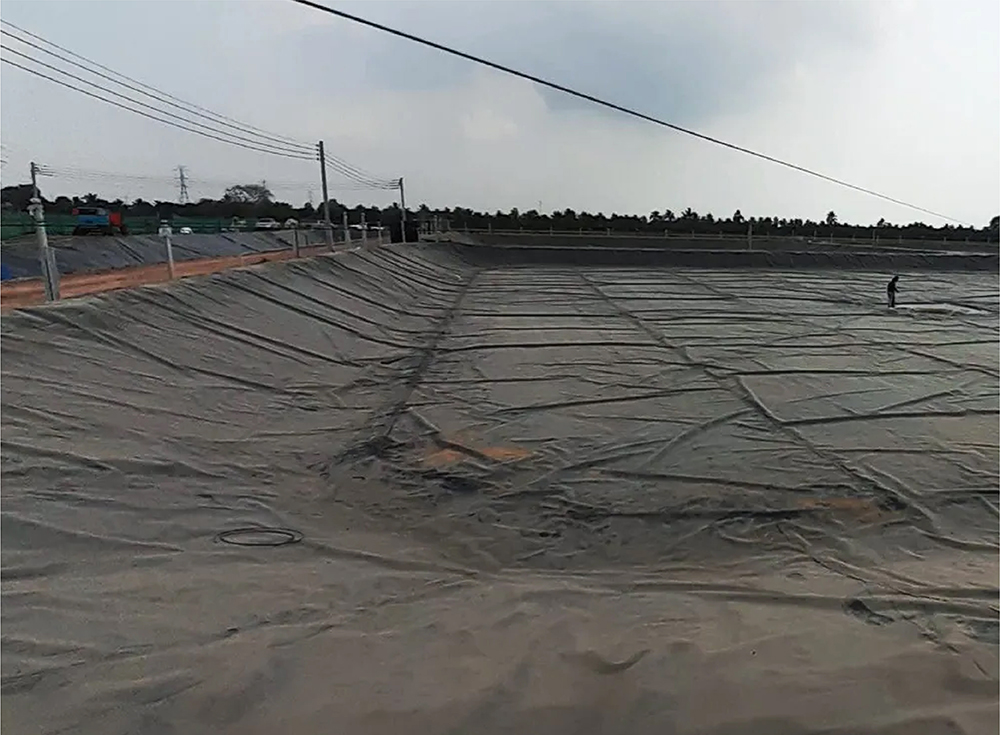

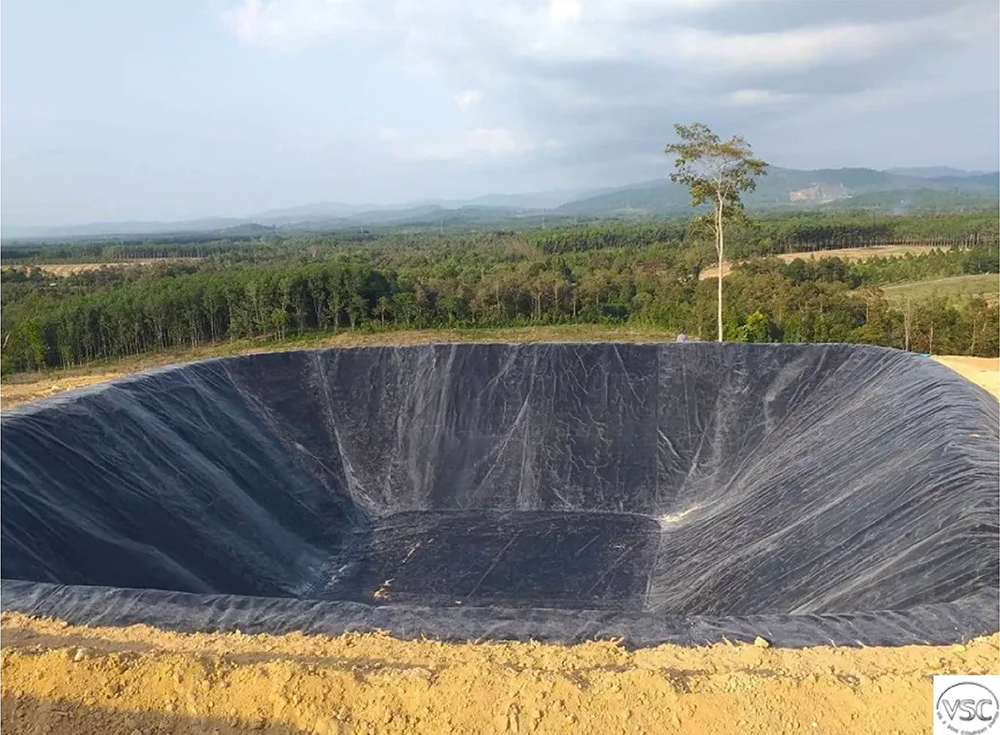

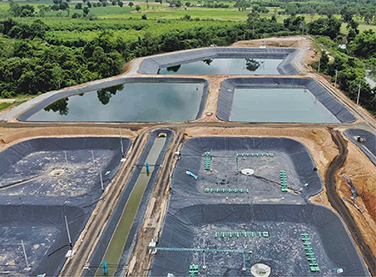

  • Irrigations and water reservoir

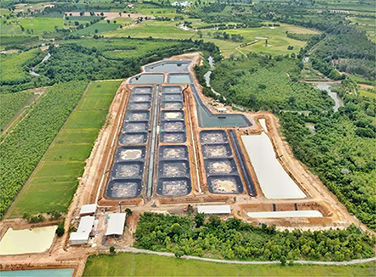

  • Aquaculture
  • Landfills

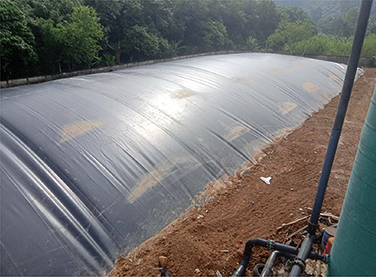

  • Biogas
  • Waste water treatment
  • Mining and Dam applications

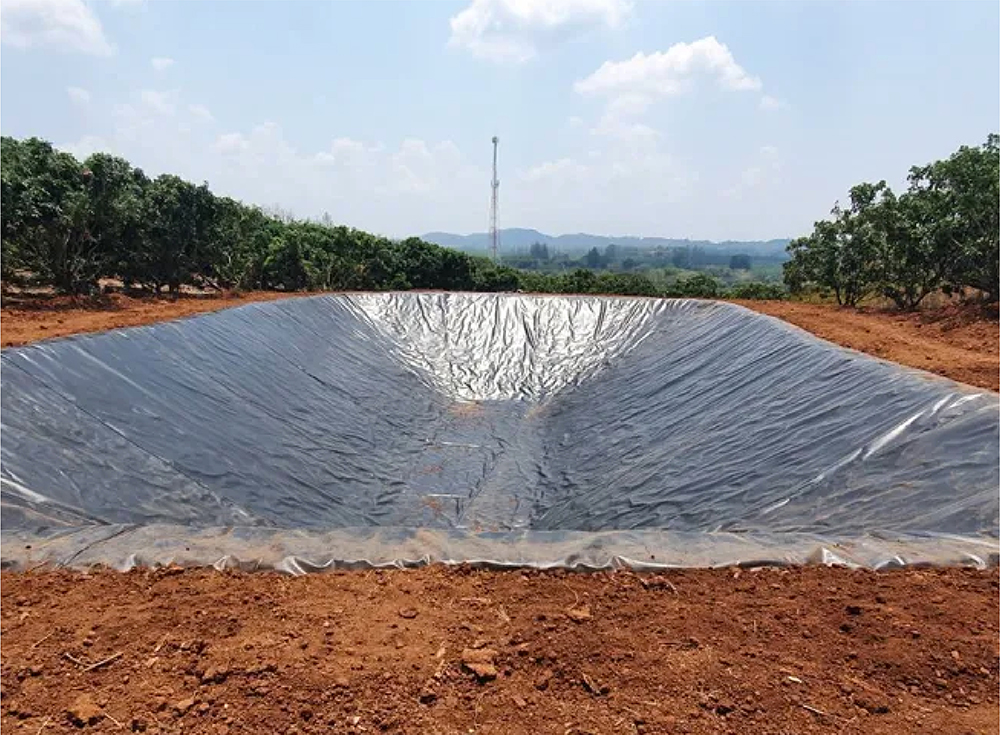

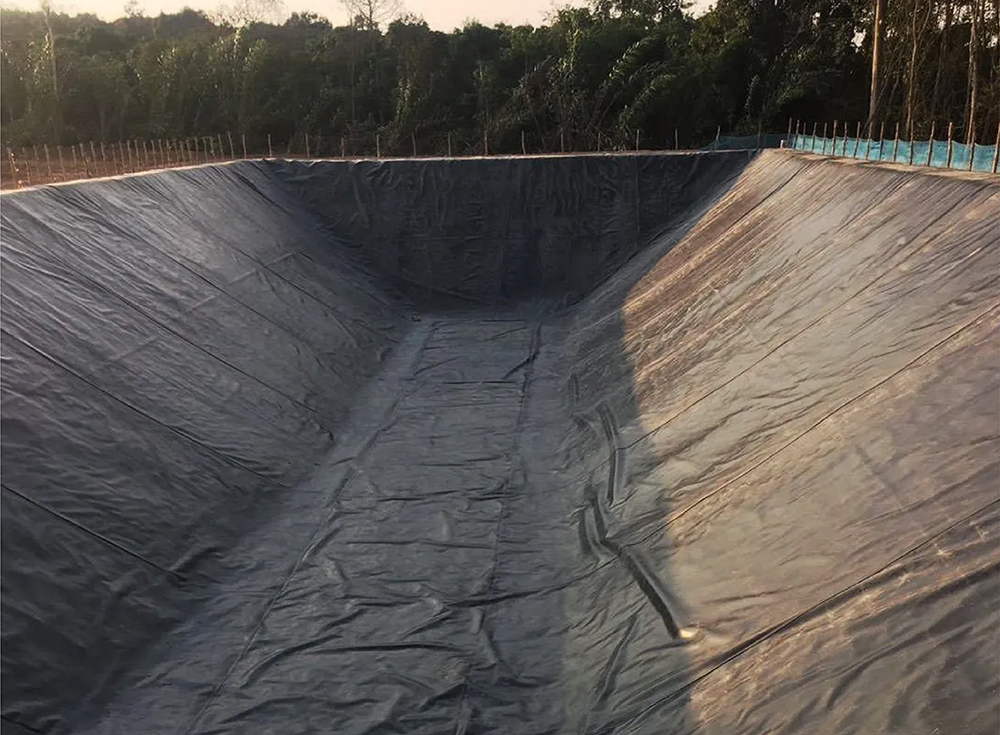

  • Ponds and lakes
  • Infrastructure
  • Waste water containment
  • Concrete tank liner
  • Power plant
  • Hazardous waste landfill
  • Pond decoration
  • Dam

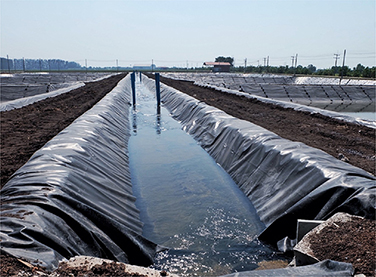

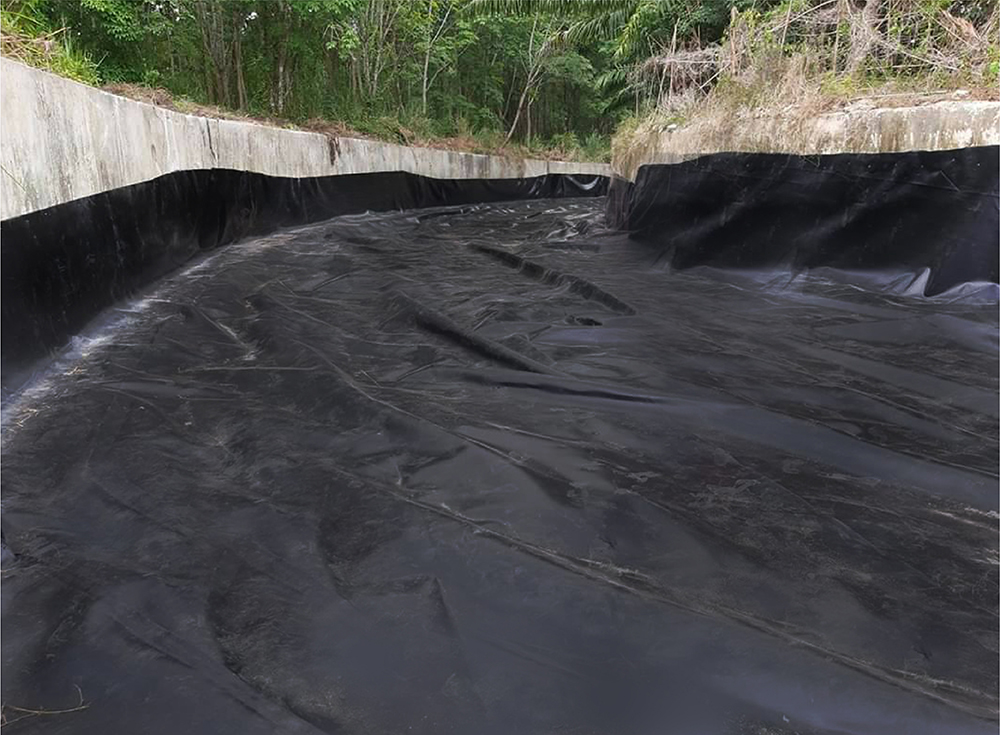

  • River bank , Water channel
  • Metro , Basement , Tunnel



Benefits of HDPE Geomembrane :
  • The most super durable and shelf life warranty
  • Lowest permeability
  • High Ultraviolet resistance
  • The most chemically resistant of all the polyethylene

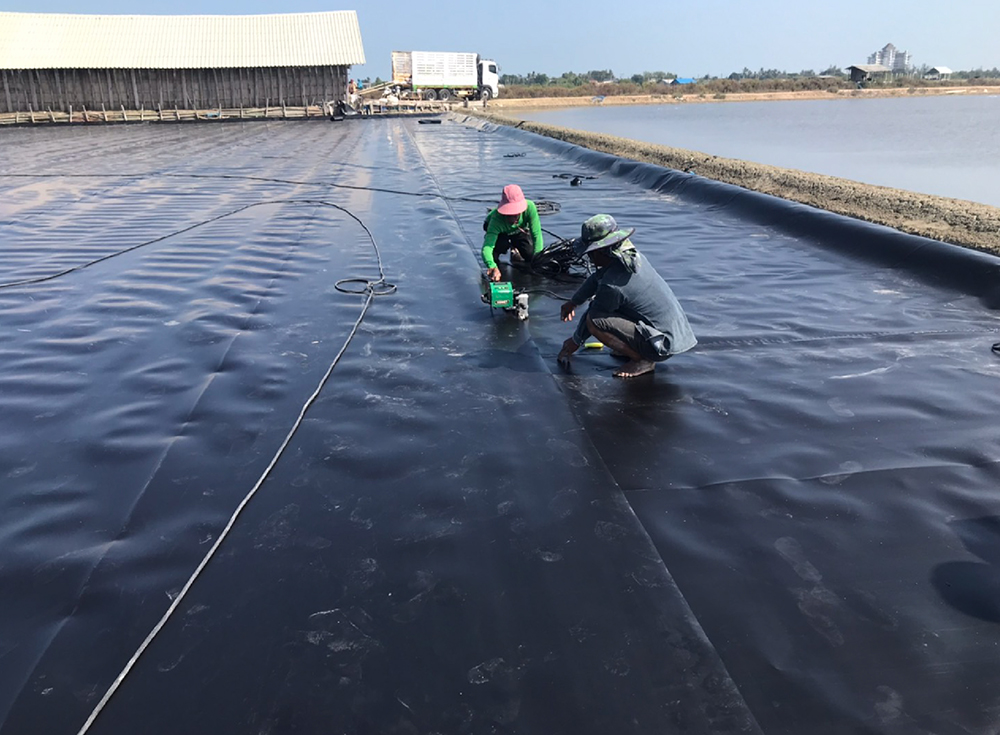

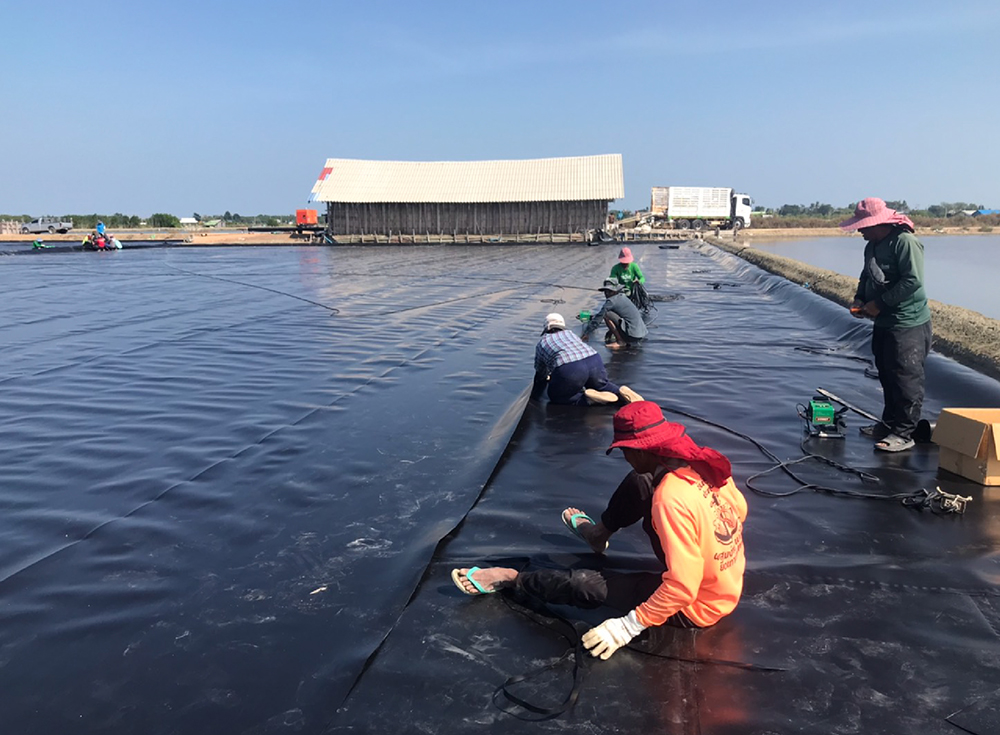

  • Hot wedged welders are virtually stronger than the sheet itself
  • High performance mechanical strength
  • High tear resistance
  • Cost effective
  • Outstanding stress crack capacity
  • Meet or exceeds GRI-GM13 standard (The Geosynthetic Research Institute)

Pond Liner Calculation

Specify dimensions in meters.

Meter
Meter
Meter

Project References

VSC has had the chance to work with The Royal Project Foundation which is an initiative of His Majesty, King Bhumibol Adulyadej of Thailand. The main purpose of this project is to solve the problems of deforestation, poverty, and opium production by promoting the alternative crops. In order to improve the quality of agricultural production, the project also invests in research and development of agriculture film which are provided by VSC. We are proud to be part of this successful project to provide the best outcome in crops growing for the farmers in the Northern provinces in Thailand.
